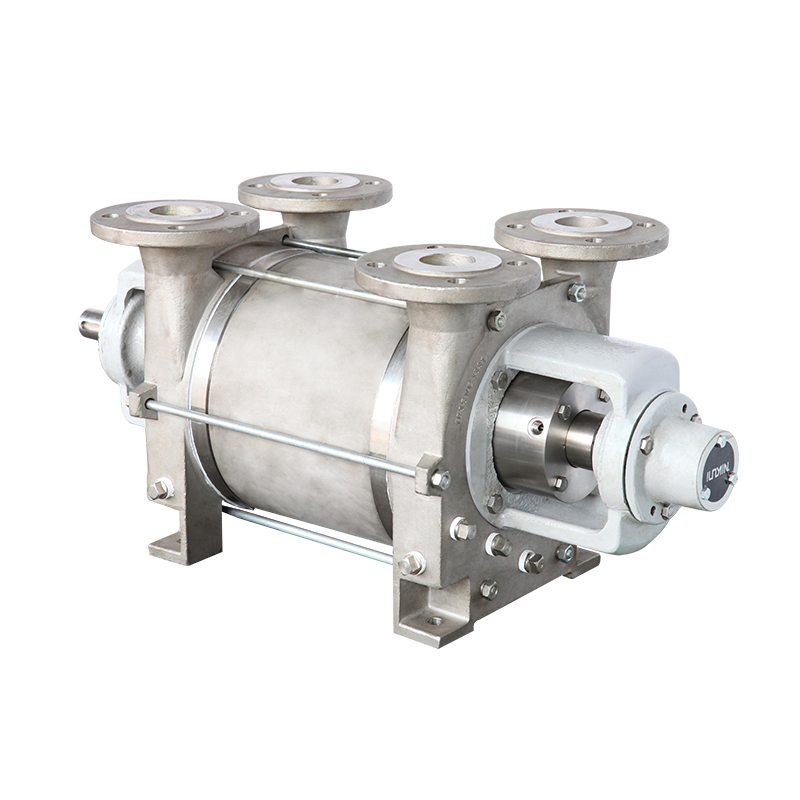

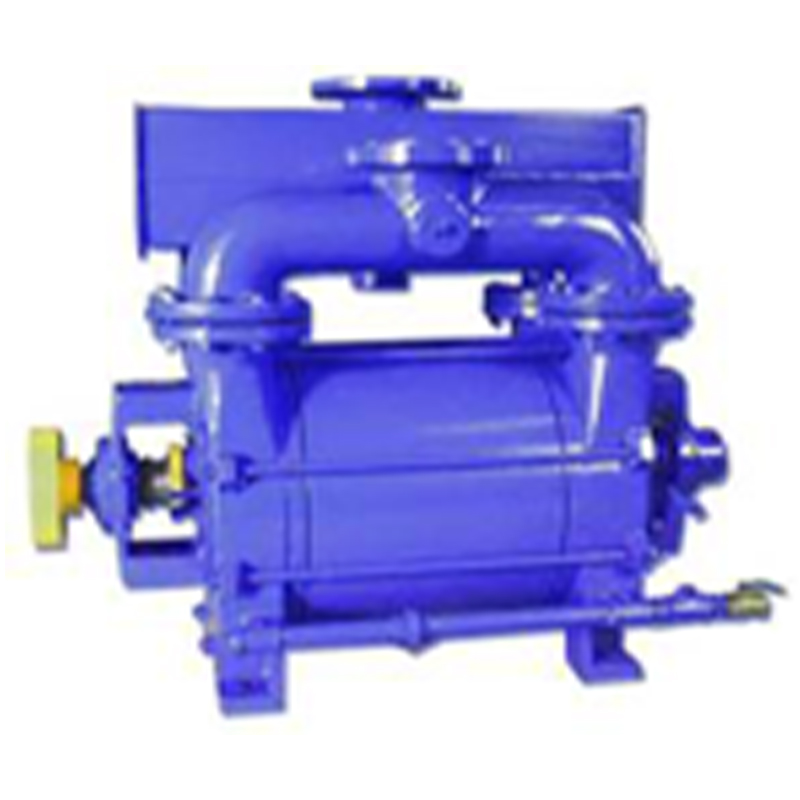

Nikuni Liquid Ring Vacuum Pump
SVC Series liquid ring vacuum pump is a one stage one action version with simple structure and reliable performance. It is designed to work at a wide range of working conditions with a maximum suction capability of up to 36000 M3/hr and is widely used in various industrial applications.
CHARATERISTICS
●As the air evacuation is similar to isothermal temperature compression, it is suitable for handling corrosive, flammable and explosive gases or gases easily polymerize under high temperature or with flexible impurities.
●It is also suitable for handling mostly condensable gases.
●Special ring liquid can be used in the working process to fit the nature of the corrosive gases to be evacuated, recovering the solvent and saving running cost.
●It can be engineered into a complete vacuum system with ring liquid cooling & circulation function.
●It can be combined with ejector pump or roots pump to achieve greater evacuation speed and high vacuum state.
APPLICATIONS
●Gas recovery & waste gas recovery in the petrochemical industry, vacuum elimination at oil wells, crude oil stabilization, crude oil vacuum evaporation, burning gas pressurization, tail gas recovery, polyether production, etc.
●Vacuum drying, distillation, degasification, crystallization and gasification, etc. in pharmaceutical industry.
●Vacuum drying, evaporation, vacuum packing in the foodstuff manufacturing industry.
●Condenser evacuation, smoke desulphurization, dust transportation, etc. in the power supply industry.
●Vacuum related applications in other industries.
