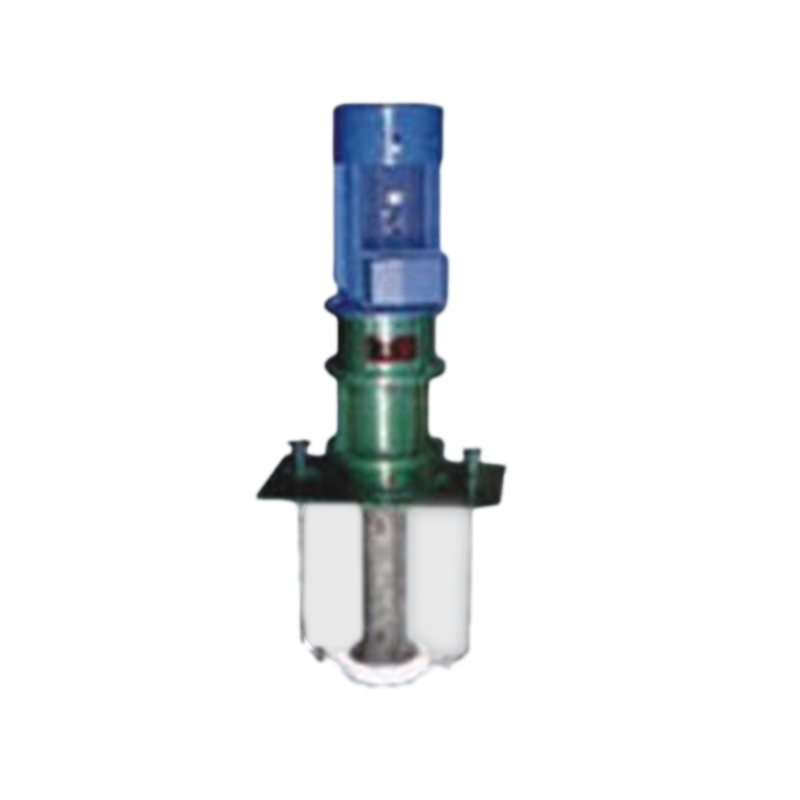

CTW-G3 Inline Centrifugal Chemical Pump
CTW-G3 Inline Centrifugal Chemical Pump
This product is a single-stage single suction, radially split vertical chemical centrifugal inline pump designed and manufactured according to AP610 and GB3115-82 standards.
Product features:
●The pump body adopts a double volute design, which can effectively eliminate radial forces and reduce pump vibration.
●The sealing chamber is suitable for various forms of mechanical seals and can be equipped with protective measures such as cooling and flushing.
●The motor and pump are coaxial, with small axial height and good stability.
●For high temperature operation or other complex working conditions it can adopt the configuration of setting bearing frames between the motor and pump.
●Compared to horizontal pumps, it has a smaller footprint and more convenient pipeline connections.
●The sealing chamber is suitable for various forms of mechanical seals and can be equipped with protective measures such as cooling and flushing.
Transportable medium:
●Various chemical liquids, organic compounds or other corrosive media;
●Inorganic and organic acids such as sulfuric acid, nitric acid, phosphoric acid, etc., of various temperatures and concentrations;
●Alkaline solutions at various temperatures and concentrations.
Performance parameters:
Flow rate: 3~600m3/h
Lift: 4-120 meters
Pressure:~2.5 megapasc
