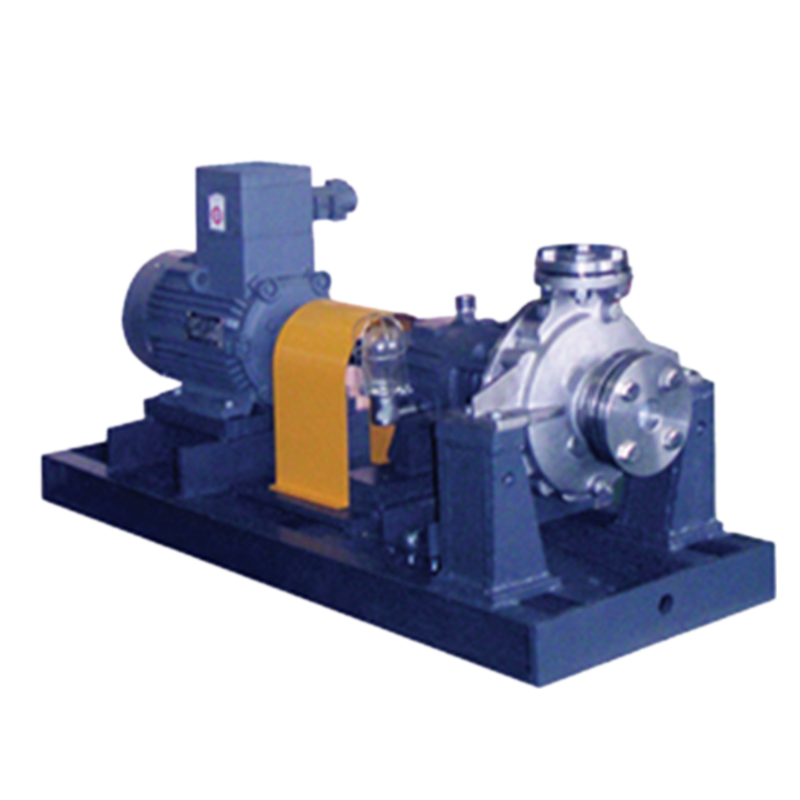

CTW Series Centrifugal Pump for Chemical Process

CTW Series Centrifugal pump designed and manufactured according to API standard.

Consult

Features Technical Indicators Overall Dimension

The CTW Series centrifugal pump is a heavy duty Petro-chemical pump whose design conforms to API 610 as well as GB5656 and ISO13709 standards. It is a horizontal pump of single stage, single suction with radially split volute casing available with close, semi-open or open impeller. Of the two available grades, Grade I is available with feet support and Grade II is available with center line supports. According to application requirements, the pump can be equipped with either gland packing seals or mechanical seals such as single face seal or random seal, double face seal or cartridge seal with or without auxiliary cooling, flushing or sealing protection plans. The pump is highly reliable in performance, easy to maintain and is widely used in petrochemical industries.

Applications：

Oil refineries, Petro-chemical plants, coal chemical plants, low temperature processes, power plants, metallurgical plants, pharmaceutical plants, food stuff plants, paper mills, pulp plants and ocean engineering processes.
Adapt to feeding sulfuric acid, nitric acid, hydrochloric acid, organic or non organic acids of low and high temperatures, alkali solutions of sodium hydroxide, sodium carbonate etc. of low and high temperatures, various Petro chemical liquids, organic chemical compounds or other corrosive liquids.

Pump Inlet Diameter (DN): DN25 – 400mm
Pump Flow (Q) up to 2600 M3/hr
Pump Head (H): up to 300 meters
Working Pressure (P): Grade I (2.5Mpa), Grade II (5Mpa)
Working Temperature (DC): from -80 DC up to 450DC
Motor speed (RPM): 2950r/min (with 2 pole motor) or 1450r/min (with 4 pole motor)
