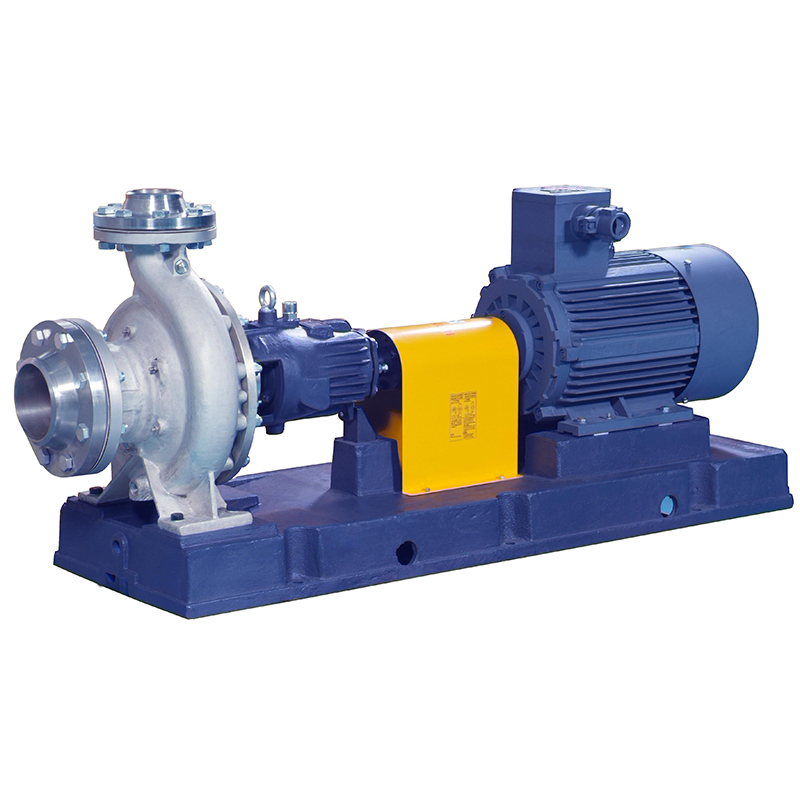

CT Series Centrifugal Pump
CT Series centrifugal pump is a medium-duty chemical pump, whose design complies with ISO2858, ISO2059, GB5656 & DIN24256. It is a horizontal pump of single stage, single suction with radially split volute casing available with close, semi-open or open impeller and feet support. It also features back pull-out bracket and lengthened coupling convenient for maintenance.
It can be equipped with multiple combinations of single or double mechanical seals and various seal protection plans and is mainly used in chemical and Petro chemical industries, oil refinery, paper pulp mill, sugar factory, power plant, pharmaceutical or foodstuff plants, etc.
Pump inlet Dia (DN): 32 - 300mm
Flow rate (Q): -2000 M3/hour
Head(H): -160 meters
Working pressure (P): 2.5Mpa
Working temperature (T): -80 - 300 DC
Motor speed (RPM): 2950 or 1475
