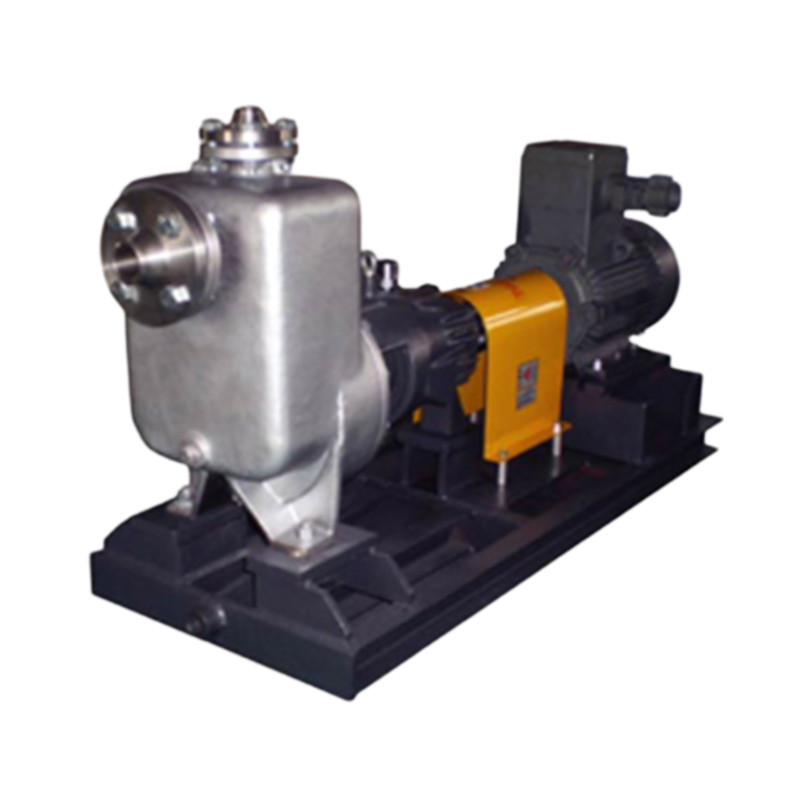

CTZ Series Self-Priming Centrifugal Pump
CTZ Series Self-Priming Centrifugal Pump
CTZ series self-priming centrifugal pump is a derivation of the CT Series centrifugal pump. It is a medium-duty chemical pump, whose design complies with ISO2858, ISO2059, GB5656 & DIN24256 standards.
It is a pump of single stage, single suction and radially split volute casing with close, semi-open or open impeller and feet support. It also features back pull-out bracket and lengthened coupling convenient for maintenance.
It can be equipped with multiple combinations of single or double mechanical seals and various seal protection plans and ii is mainly used in chemical and Petro chemical industries, oil refinery, paper mill , pulp mill, sugar factory, power plant, pharmaceutical or foodstuff plants, etc.
It is also adaptable to priming highly corrosive liquids like sulfuric acid. nitric acid, phosphoric acid from trucks or underground tanks.
Flow rate (Q): -800 M3/hour
Head (H): -130 meters
Working pressure (P): 2.5Mpa
self priming head: up to 6 meters
Working temperature (T): -20 - 80 DC
Motor speed (RPM): 2950 or 1475
